Types Of Residential & Commercial Solar Power Systems

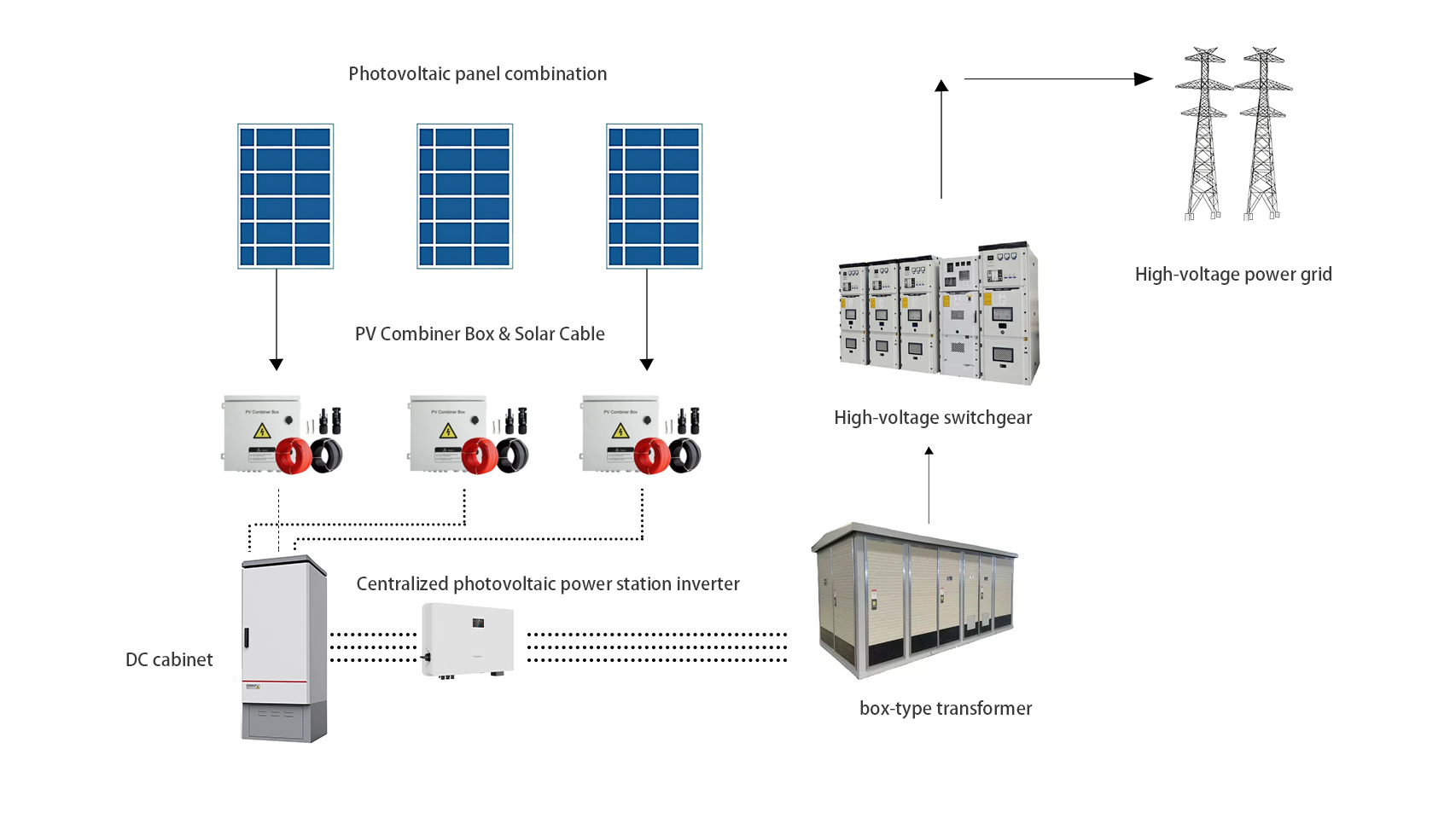

Grid-tied Solar System Components

Solar Panels: The heart of any solar power system, these panels capture sunlight and convert it into electrical energy. Modern panels are highly efficient and capable of generating significant amounts of power even on days with limited sunlight.

Inverter: This critical component transforms the DC electricity produced by the solar panels into AC electricity, which is the standard form used in homes and businesses. Inverters also monitor the system’s performance and ensure that the electricity generated is safe and compatible with the grid and home appliances.

Metering System: Essential for implementing net metering, this system tracks the amount of electricity exported to and imported from the grid. Advanced metering systems can provide detailed insights into a system’s performance, including real-time data on production and consumption, allowing for more informed energy management decisions.

Grid Interface: Facilitates the connection between the solar panel system and the utility grid, ensuring that the transition of power is smooth and compliant with local regulations and grid standards.

Mounting Hardware: Durable frames and supports that secure the solar panels either on the roof or on the ground. This hardware is designed to withstand environmental factors such as wind and snow, ensuring the panels remain optimally positioned for maximum sun exposure

Off-Grid Solar System Components

Solar Panels: These are the primary source of electricity generation in an off-grid system, capturing solar energy and converting it into electrical power.

Batteries: Essential for storing surplus electricity for use during times when solar production is low, such as at night or on cloudy days. Modern battery technologies offer high storage capacities and longevity.

Inverter: Converts the DC electricity stored in batteries into AC power, making it usable for standard home and business appliances.

Backup Generator: Often included in off-grid systems for additional reliability, especially during prolonged periods of insufficient sunlight.

Energy Management System (EMS): Monitors and optimizes energy production, consumption, and storage, ensuring the efficient use of resources. Integral to this system, the Charge Controller strengthens the EMS by managing the flow of electricity to and from the battery bank, preventing overcharging and significantly extending battery life.
